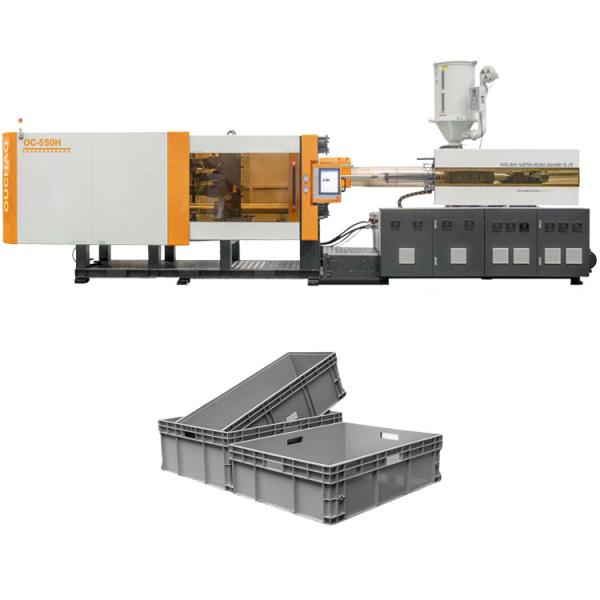

550T Logistic Warehouse Plastic Turnover Box Making Injection Molding Machine
Company Advantages
High-standard components: We use high-standard components from well-known domestic and foreign manufacturers to ensure the high precision and consistency of the injection molding machine when producing turnover boxes, and improve product quality.
Precision and stability: The injection molding machine is equipped with a precise clamping structure and a stable control system to ensure that the turnover boxes produced have high precision and high strength to meet the requirements of various industrial applications.
Flexible customization: Supports customization of injection molding machines according to customer needs to ensure that each machine can meet the requirements of producing specific types of turnover boxes and improve production flexibility.
Efficient energy consumption management: Advanced energy consumption management system reduces energy consumption in the production of turnover boxes, reduces operating costs, and improves economic benefits.
Product Advantages
After continuous optimization and upgrading, OC-550H standard high-speed injection molding machine has become an efficient tool for the production of turnover boxes. The clamping utilization rate reaches 100%, ensuring that the equipment can be maximized for each production.
Opening stroke: The outward center-locked clamping structure provides a larger mold opening stroke, which is suitable for the production of turnover boxes of various sizes, and it is more convenient and quick to remove the finished product.
Optimized oil circuit and program: The optimized oil circuit and program improve the repeatability of the mold opening and clamping positions, making the machine run more smoothly and reliably, suitable for large-scale turnover box production.
High repeatability and stability: The high repeatability of the mold opening and closing positions and the smooth operation of the machine ensure the consistency of the quality of each batch of turnover boxes, reduce the scrap rate, and increase the output.
Reliable production partner: We believe that the OC-550H injection molding machine will become your reliable partner in the production of turnover boxes, providing stable and efficient production guarantees.
Parameters
| MODEL | OC550H |
| Clamping force (kN) | 5500 |
| Space between tie bar (mm*mm) | 860*800 |
| Max. mold thickness (mm) | 800 |
| Min. mold thickness(mm) | 300 |
| Opening stroke (mm) | 1010 |
| Ejector stroke(mm) | 210 |
| Ejector force forward(Kn) | 103 |
| Screw diameter(mm) | 80 |
| Screw L/D ratio | 22 |
| Theoretical injection volume (cm3) | 2060 |
| Shot weight (PS) g | 1918 |
| Injection pressure(MPa) | 149 |
| Injection speed (mm/s) | 133 |
| Injection rate (g/s) | 646 |
| Motor power (Kw) | 75 |
| Oil tank capacity(L) | 850 |
| Heater power (Kw) | 27 |
| Machine Weight (T) | 20 |
| Machine size L×W×H (m) | 8.7*2.1*2.2 |
Detail Pictures
